Amphenol RF

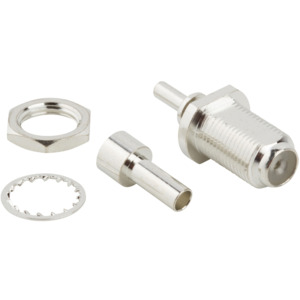

Amphenol RF 222114-10 F-Type RF Connector, Straight, Crimp, Jack, Bulkhead Rear Mount, 75 Ohm
Our Part #56738.1
Condition:New
Mfr Part #222114-10
Amphenol RF
Amphenol RF 222114-10 F-Type RF Connector, Straight, Crimp, Jack, Bulkhead Rear Mount, 75 Ohm
Our Part #56738.1
Condition:New
Mfr Part #222114-10
CA Prop 65
RoHS
$4.35EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $4.35 | |
| 200 | $4.26 | Save |
| 500 | $4.13 | Save |
| 1,000 | $4.05 | Save |
Multiples of: 100
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
F-Type Connectors
Features and Benefits:
- Cylindrical coaxial contact provides superior RF performance and excellent insertion/withdrawal characteristics
- Multiple PCB mount packages: surface mount, edge mount, right angle and straight, meets many customer application needs
- Accommodates .022-.042 in. diameter conductor sizes
- One connector accommodates a wide range of cable sizes, reducing part numbers
Amphenol RF’s F-Type is a 75 ohm product designed for a wide range of coaxial cable with 0.022-0.042 in. diameter center conductors, and complies with a 3/8-32 thread specification.
The high-performance F-Type connector is a threaded alternative to the slide-on G-Type connector.
Applications:
- Head End Equipment
- Set Top Boxes
- CATV
- High Speed Cable Modems
- CIMs
- Hybrid Fiber Coax Networks
Brand: Amphenol RF
Gender: Jack
Mounting Style: Bulkhead Rear Mount
Termination Type: Crimp
Impedance: 75 Ohms
For Use With: RG-179 Belden 179DT
Contact Finish: Gold
Contact Material: Beryllium Copper
Finish: Nickel
Frequency: 2 GHz
Insulation Material: Polypropylene
Material: Brass
Orientation: Straight
Type: F-Type Connectors
