Amphenol RF
Amphenol RF

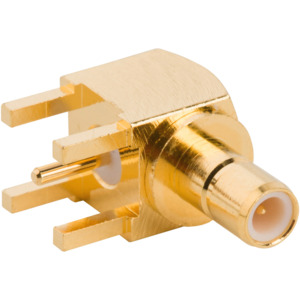

Amphenol RF 142146-11 RF SMB Connector, Right Angle, Jack, PCB Through Hole, 50 Ohm

Our Part #56519.1

Condition:New

Mfr Part #142146-11

Amphenol RF 142146-11
Amphenol RF
Amphenol RF

Amphenol RF 142146-11 RF SMB Connector, Right Angle, Jack, PCB Through Hole, 50 Ohm

Our Part #56519.1

Condition:New

Mfr Part #142146-11

CA Prop 65
RoHS
$6.16EACH
Qty:Price:Savings
1$6.16
200$5.85Save
500$5.54Save
1,000$5.42Save
Multiples of: 100
Calif. Prop 65
RoHS

SMB Connectors

  • Various plating options in nickel, gold, and tin lead
  • Quick connect/disconnect snap on mating reduces installation time
  • SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force

The SMB interface features a snap-on coupling mechanism and is available in 50 ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.

Applications:

  • Base Stations
  • Antennas
  • Radio Boards
  • PC/LAN
  • Global Positioning System (GPS)
  • Instrumentation
  • Telecommunications

BrandAmphenol RF
GenderJack
Termination TypePCB Through Hole
Impedance50 Ohms
Contact FinishGold
Contact MaterialBrass
FinishGold
Frequency4 GHz
MaterialBrass
OrientationRight Angle
TypeSMB Connectors
$6.16EACH
Qty:Price:Savings
1$6.16
200$5.85Save
500$5.54Save
1,000$5.42Save
Multiples of: 100
