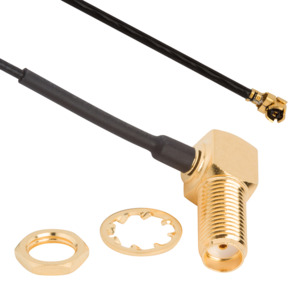

Amphenol RF 095-902-517-070 RF Micro-Cable, AMC Rt Angle Plug to SMA Rt Angle Bulkhead Jack, 70mm L, 50 Ohm

Our Part #55579.1

Condition:New

Mfr Part #095-902-517-070

Amphenol RF 095-902-517-070
Amphenol RF
Amphenol RF

Amphenol RF 095-902-517-070 RF Micro-Cable, AMC Rt Angle Plug to SMA Rt Angle Bulkhead Jack, 70mm L, 50 Ohm

Our Part #55579.1

Condition:New

Mfr Part #095-902-517-070

CA Prop 65
RoHS
$22.96EACH
Multiples of: 100
Calif. Prop 65
RoHS

SMA to AMC Ultraminiature Cable Assemblies

Features and Benefits:

  • Reliable electrical performance up to 9 GHz
  • Threaded coupling mechanism for secure mating
  • Vibration resistant design
  • Waterproof IP67 options available
  • Wide variety of configurations and cable types

Amphenol RF offers a full line of SMA to AMC fixed length cable assemblies featuring the popular threaded SMA interface and the ultraminiature AMC connector. These assemblies are available in both IP67 and non-IP67 configurations on industry-standard micro-coax cable types. SMA to AMC assemblies are ideal for applications that require a space efficient solution.

SMA to AMC cable assemblies feature a small footprint and low profile and proves reliable electrical performance up to 6 GHz. These 50 ohm assemblies are compatible with the industry-standard U.FL interface for additional mating options.

Non-IP67 assemblies offer a smaller flange and no o-ring seal whereas waterproof IP67 assemblies are designed to offer an extra layer of protection from external elements. Both IP67 and non-IP67 assemblies can accommodate panels up to 6.71 mm and 3.20 mm respectively.

Applications:

  • Antennas
  • Base Stations
  • Drones
  • Test and Measurement Equipment
  • Industrial Automation and Inspection
  • Bluetooth and Cellular technology
  • WLAN

BrandAmphenol RF
Cable Length2.76" (70 mm)
Cable Diameter1.320 mm
FinishGold Plating
Frequency6 GHz
Impedance50 Ohms
Insulation MaterialSMA-PTB; AMC-PTFE
MaterialBrass
TypeAMC Cable Assemblies
