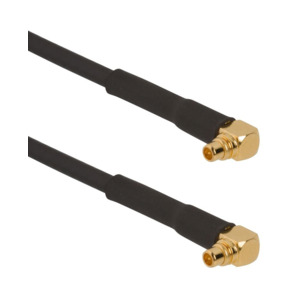

Amphenol RF 095-900-550M050 RF Cable, MMCX Rt Angle Plug to MMCX Rt Angle Plug, RG-174, 500mm L, 50 Ohm
Our Part #55328.1
Condition:New
Mfr Part #095-900-550M050
Amphenol RF 095-900-550M050 RF Cable, MMCX Rt Angle Plug to MMCX Rt Angle Plug, RG-174, 500mm L, 50 Ohm
Our Part #55328.1
Condition:New
Mfr Part #095-900-550M050
WARNING
RoHS
$20.84EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $20.84 | |
| 100 | $20.01 | Save |
| 200 | $19.59 | Save |
| 500 | $19.17 | Save |
| 1,000 | $18.76 | Save |
Multiples of: 25
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
MMCX Plug To Plug Cable Assemblies
Features and Benefits:
- Broadband performance with low reflections
- Quick connect/disconnect snap-on mating
- Micro-miniature package size ideal for compact applications
- Conforms to the European CECC 22000 specs
Amphenol RF offers a full line of high-performance MMCX cable assemblies on a variety of small flexible cable types. These 50 ohm assemblies are available with plug to plug configurations in an extensive range of standard lengths from 6 inches to 3 meters.
The MMCX connector series is a robust micro-miniature interface with broadband capabilities of DC to 6 GHz. These connectors are manufactured from brass with gold plating and offer reliable electrical performance up to the limits of the cable type.
Applications:
- Broadband Modules
- Wi-Fi Access Points
- GPS Units
- Antennas
Brand: Amphenol RF
Cable Length: 19.69" (500 mm)
Frequency: 1 GHz
Impedance: 50 Ohms
Type: MMCX Cable Assemblies
