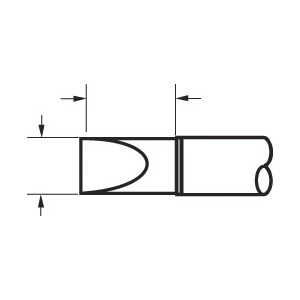

Metcal STTC-017 Soldering Tip, Chisel, 5.0mm x 7.6mm, 675 Deg. F, STTC-600 Series
Our Part #551TI617
Condition:New
Mfr Part #STTC-017
Metcal STTC-017 Soldering Tip, Chisel, 5.0mm x 7.6mm, 675 Deg. F, STTC-600 Series
Our Part #551TI617
Condition:New
Mfr Part #STTC-017
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $32.70 | |
| 3 | $32.05 | Save |
| 10 | $31.72 | Save |
| 25 | $31.39 | Save |
| 100 | $31.07 | Save |
- Description
- Specifications
- Documents
STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems. All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C. The temperature/series is designated by the first digit following the dash in the part number. e.g. 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx. Metcal recommends the 700-series for the majority of applications. The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $32.70 | |
| 3 | $32.05 | Save |
| 10 | $31.72 | Save |
| 25 | $31.39 | Save |
| 100 | $31.07 | Save |
