BNC Cable Assemblies

Features and Benefits:

• Tested to ensure there are no opens or shorts
• Available with 50 and 75 ohm impedance
• Max frequency varies by connector/cable selection

Amphenol RF offers a comprehensive selection of both in-series and between-series BNC cable assemblies. In-series BNC cable assemblies feature BNC connectors terminated to both sides of a length of cable. Between-series BNC cable assemblies have a BNC connector terminated to one side of a length of cable with another connector series terminated to the opposite side. Between-series BNC cable assembly configurations include BNC to 1.0-2.3, AMC, HD-BNC, MCX, Mini-SMB, MMCX, SMA, SMB and SMZ connector option

Popular RF connector options include straight and right angle plugs and jacks. Jacks are available with or without panel mounting options. Both rear-mount and front-mount bulkhead configurations exist. Connectors are typically constructed of brass with nickel plating. Male contacts are brass with gold plating and female contacts are machined from beryllium copper or phosphor bronze and also gold plated.

BNC cable assemblies are available with a wide range of cable types including flexible RG cables, low loss cables as well as hand-formable semi-rigid options. Precision test cable assemblies designed with phase stability in mind are also offered.

Conformable Cable:

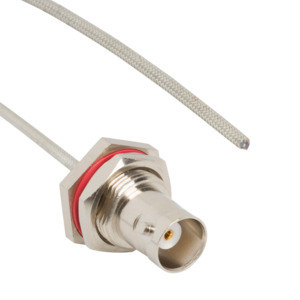

Conformable cable types are a flexible, malleable alternative to more rigid coaxial cables. They can be stripped and formed by hand without any special tools being required. These cables are available in a wide variety of configurations including most industry standard RF connectors. Conformable cable is ideal for applications that require a high-quality solution with no signal loss caused by the manipulation of the cable.
