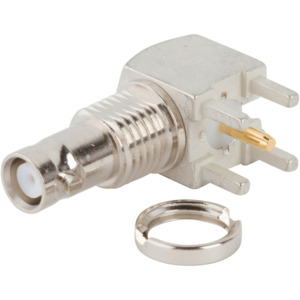

Amphenol RF 034-5066 RF HD-BNC Connector, Rt Angle, Jack, PCB Thru Hole, Bulkhead Rear Mount, Isolated, 50 Ohm

Our Part #53723.1

Condition:New

Mfr Part #034-5066

Amphenol RF 034-5066
Amphenol RF
Amphenol RF

Amphenol RF 034-5066 RF HD-BNC Connector, Rt Angle, Jack, PCB Thru Hole, Bulkhead Rear Mount, Isolated, 50 Ohm

Our Part #53723.1

Condition:New

Mfr Part #034-5066

CA Prop 65
RoHS
$21.05EACH
Qty:Price:Savings
1$21.05
200$20.00Save
500$18.95Save
1,000$18.52Save
Multiples of: 100
Calif. Prop 65
RoHS

HD-BNC Connectors

Features and Benefits:

  • Trusted bayonet style positive lock Closed entry interface
  • VSWR or Return Loss: 30 dB min @ 6 GHz (for all straight configurations)
  • Assured mating with visual indicator

Engineered to enhance electrical and mechanical performance, the HD-BNC connector line features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating.

The HD-BNC product line delivers both true 50 and 75 ohm performance in a footprint 4 times smaller than traditional BNC connectors. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.

High performance 12G 75 ohm products are available to support 4K-SDI and Ultra High-Definition video.

Applications:

  • Broadcast
  • Video Modules and Routers
  • Cameras
  • Military Radio
  • Instrumentation

BrandAmphenol RF
GenderJack
Mounting StyleBulkhead Rear Mount
Termination TypePCB Through Hole
Impedance50 Ohms
Contact FinishGold
Contact MaterialBeryllium Copper
FinishNickel/Matte Tin
Frequency6 GHz
Insulation MaterialPTFE
MaterialBrass
OrientationRight Angle
TypeHD-BNC Connectors
$21.05EACH
Qty:Price:Savings
1$21.05
200$20.00Save
500$18.95Save
1,000$18.52Save
Multiples of: 100
