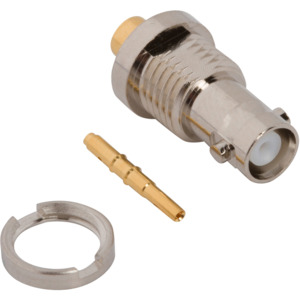

HD-BNC Connectors
Features and Benefits:
- Trusted bayonet style positive lock Closed entry interface
- VSWR or Return Loss: 30 dB min @ 6 GHz (for all straight configurations)
- Assured mating with visual indicator
Engineered to enhance electrical and mechanical performance, the HD-BNC connector line features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating.
The HD-BNC product line delivers both true 50 and 75 ohm performance in a footprint 4 times smaller than traditional BNC connectors. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.
High performance 12G 75 ohm products are available to support 4K-SDI and Ultra High-Definition video.
Applications:
- Broadcast
- Video Modules and Routers
- Cameras
- Military Radio
- Instrumentation
Brand: Amphenol RF
Gender: Jack
Mounting Style: Bulkhead Rear Mount
Termination Type: Crimp
Impedance: 50 Ohms
For Use With: 0.085-inch Conformable 0.086-inch Conformable RG-405 Bulkhead
Contact Finish: Gold
Contact Material: Beryllium Copper
Finish: Nickel
Frequency: 6 GHz
Insulation Material: PTFE
Material: Brass
Orientation: Straight
Type: HD-BNC Connectors
