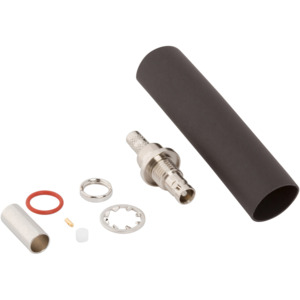

Amphenol RF 034-1123-12G RF HD-BNC Connector, Straight, Crimp, Jack, Bulkhead Rear Mount, Optimized, 75 Ohm

Our Part #53693.1

Condition:New

Mfr Part #034-1123-12G

Amphenol RF 034-1123-12G
Amphenol RF
Amphenol RF

Amphenol RF 034-1123-12G RF HD-BNC Connector, Straight, Crimp, Jack, Bulkhead Rear Mount, Optimized, 75 Ohm

Our Part #53693.1

Condition:New

Mfr Part #034-1123-12G

CA Prop 65
RoHS
$15.71EACH
Qty:Price:Savings
1$15.71
200$15.40Save
500$14.92Save
1,000$14.61Save
Multiples of: 100
Calif. Prop 65
RoHS

HD-BNC Connectors

Features and Benefits:

  • Trusted bayonet style positive lock Closed entry interface
  • VSWR or Return Loss: 30 dB min @ 6 GHz (for all straight configurations)
  • Assured mating with visual indicator

Engineered to enhance electrical and mechanical performance, the HD-BNC connector line features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating.

The HD-BNC product line delivers both true 50 and 75 ohm performance in a footprint 4 times smaller than traditional BNC connectors. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.

High performance 12G 75 ohm products are available to support 4K-SDI and Ultra High-Definition video.

Applications:

  • Broadcast
  • Video Modules and Routers
  • Cameras
  • Military Radio
  • Instrumentation

BrandAmphenol RF
GenderJack
Mounting StyleBulkhead Rear Mount
Termination TypeCrimp
Impedance75 Ohms
For Use WithBelden 1855A Belden 4855R Belden 4855P
Contact FinishGold
Contact MaterialBrass and Beryllium Copper
FinishNickel
Frequency18 GHz
Insulation MaterialPTFE
MaterialBrass
OrientationStraight
StandardsIP67 Water-Resistant Rating
TypeHD-BNC Connectors
