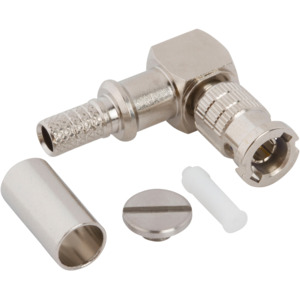

Amphenol RF 034-1118-12G RF HD-BNC Connector, Right Angle, Crimp, Plug, Optimized, 75 Ohm
Our Part #53688.1
Condition:New
Mfr Part #034-1118-12G
Amphenol RF 034-1118-12G RF HD-BNC Connector, Right Angle, Crimp, Plug, Optimized, 75 Ohm
Our Part #53688.1
Condition:New
Mfr Part #034-1118-12G
WARNING
RoHS
$11.59EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $11.59 | |
| 200 | $11.36 | Save |
| 500 | $11.01 | Save |
| 1,000 | $10.78 | Save |
Multiples of: 100
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
HD-BNC Connectors
Features and Benefits:
- Trusted bayonet style positive lock Closed entry interface
- VSWR or Return Loss: 30 dB min @ 6 GHz (for all straight configurations)
- Assured mating with visual indicator
Engineered to enhance electrical and mechanical performance, the HD-BNC connector line features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating.
The HD-BNC product line delivers both true 50 and 75 ohm performance in a footprint 4 times smaller than traditional BNC connectors. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.
High performance 12G 75 ohm products are available to support 4K-SDI and Ultra High-Definition video.
Applications:
- Broadcast
- Video Modules and Routers
- Cameras
- Military Radio
- Instrumentation
Brand: Amphenol RF
Gender: Plug
Termination Type: Crimp
Impedance: 75 Ohms
For Use With: Belden 1855A Belden 4855R Belden 4855P
Contact Finish: Gold
Contact Material: Phosphor Bronze
Finish: Nickel
Frequency: 18 GHz
Insulation Material: PTFE
Material: Brass
Orientation: Right Angle
Type: HD-BNC Connectors
