Amphenol RF
Amphenol RF

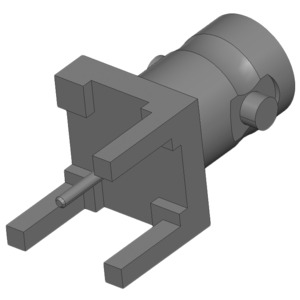

Amphenol RF 034-1021 RF HD-BNC Connector, Straight, Jack, PCB Through Hole, 75 Ohm

Our Part #53658.1

Condition:New

Mfr Part #034-1021

Amphenol RF 034-1021
Amphenol RF
Amphenol RF

Amphenol RF 034-1021 RF HD-BNC Connector, Straight, Jack, PCB Through Hole, 75 Ohm

Our Part #53658.1

Condition:New

Mfr Part #034-1021

CA Prop 65
RoHS
$7.31EACH
Qty:Price:Savings
1$7.31
200$6.94Save
500$6.58Save
1,000$6.43Save
Multiples of: 100
Calif. Prop 65
RoHS

HD-BNC Connectors

Features and Benefits:

  • Trusted bayonet style positive lock Closed entry interface
  • VSWR or Return Loss: 30 dB min @ 6 GHz (for all straight configurations)
  • Assured mating with visual indicator

Engineered to enhance electrical and mechanical performance, the HD-BNC connector line features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating.

The HD-BNC product line delivers both true 50 and 75 ohm performance in a footprint 4 times smaller than traditional BNC connectors. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.

High performance 12G 75 ohm products are available to support 4K-SDI and Ultra High-Definition video.

Applications:

  • Broadcast
  • Video Modules and Routers
  • Cameras
  • Military Radio
  • Instrumentation

BrandAmphenol RF
GenderJack
Termination TypePCB Through Hole
Impedance75 Ohms
Contact FinishGold
Contact MaterialBeryllium Copper
FinishGold
Frequency4.5 GHz
Insulation MaterialPTFE
MaterialBrass
OrientationStraight
TypeHD-BNC Connectors
$7.31EACH
Qty:Price:Savings
1$7.31
200$6.94Save
500$6.58Save
1,000$6.43Save
Multiples of: 100
