Amphenol RF

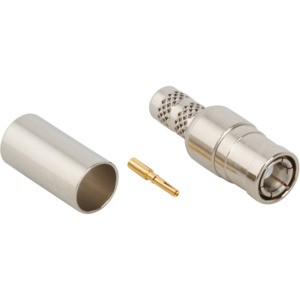

Amphenol RF 142219 RF SMB Connector, Straight, Crimp, Plug, 50 Ohm
Our Part #52655.1
Condition:New
Mfr Part #142219
Amphenol RF
Amphenol RF 142219 RF SMB Connector, Straight, Crimp, Plug, 50 Ohm
Our Part #52655.1
Condition:New
Mfr Part #142219
WARNING
RoHS
$9.12EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $9.12 | |
| 200 | $8.66 | Save |
| 500 | $8.21 | Save |
| 1,000 | $8.03 | Save |
Multiples of: 100
Calif. Prop 65
RoHS
- Description
- Specifications
- Documents
SMB Connectors
- Various plating options in nickel, gold, and tin lead
- Quick connect/disconnect snap on mating reduces installation time
- SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force
The SMB interface features a snap-on coupling mechanism and is available in 50 ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.
Applications:
- Base Stations
- Antennas
- Radio Boards
- PC/LAN
- Global Positioning System (GPS)
- Instrumentation
- Telecommunications
Brand: Amphenol RF
For Use With: RG-55 RG-142 RG-223 RG-400
Frequency: 4 GHz
Type: SMB Connectors
$9.12EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $9.12 | |
| 200 | $8.66 | Save |
| 500 | $8.21 | Save |
| 1,000 | $8.03 | Save |
Multiples of: 100
