Aven
Aven

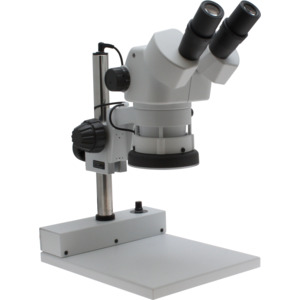

Aven 26800B-371-ESD Microscope, Binocular, 50X, Ring Light, PLED Stand, ESD Safe, SPZ-50E Series

Our Part #489-260

Condition:New

Mfr Part #26800B-371-ESD

Aven 26800B-371-ESD
Aven
Aven

Aven 26800B-371-ESD Microscope, Binocular, 50X, Ring Light, PLED Stand, ESD Safe, SPZ-50E Series

Our Part #489-260

Condition:New

Mfr Part #26800B-371-ESD

$2,960.00EACH
Qty:Price:Savings
1$2,960.00
2$2,812.00Save
3$2,752.80Save
5$2,723.20Save
  • ESD Safe coating protects sensitive components from electrostatic discharges
  • Superior optics and reliable mechanical components
  • Magnification: 6.7x to 50x

ESD Safe SPZ-50E Stereo Zoom Binocular Microscope 6.7x to 50x, max 200x with optional lenses on stand PLED with 60 eco-friendly LED lights with dimmer. The focus mount has coarse and fine focusing for precise control. 200 x 284mm base. Compact design helps save bench space.

Dimmable Ring Light with 60 LEDs is Built In

This inspection and laboratory microscope offers a best-in-class zoom ratio with sharp 3D images, a wide field of view, and a large working distance. Unibody construction and multi-coated optical components assure excellent contrast and definition of 3D images from edge to edge. A 60-LED ring light with dimmer control is built into the focus mount, which has coarse and fine focusing for precise control. Features a specialized ESD-safe coating designed to protect sensitive components from electrostatic discharges.

Wide Magnification Range

An impressive magnification range of 6.7x - 50x delivers excellent clarity, resolution, and depth of field with accurate, lifelike color reproduction. Expand your magnification even further with optional 15x and 20x eyepieces (also available from Aven).

Superior Optics

At 45 degrees, the Standard High Eye Point Wide Field 10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and an Adjustable Interpupillary Distance of 1.96" (50mm) to 2.91" (74mm) provide operators with even more flexibility in their individual applications.

Adjustable Zoom Knob

An adjustable zoom knob further enhances your precision work experience. The graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.

Durable Stand

The package includes Aven's Stand PLED featuring 60 built-in eco-friendly LED lights and a dimmer. The lightweight, compact stand features a rack-and-pinion focus mount (74 mm in diameter) with fine focus adjustment for precise control, and a large base (220mm x 284 mm x 15mm). 255mm vertical post length.

Brightness Adjustment

The stand's built-in dimmer makes this an ideal scope for examining small parts where bench space is a premium. The energy-saving daylight 60 LED ring light with a dimmer control built into the focus mount significantly reduces power consumption, ensuring a flicker-free experience that lowers energy costs and enhances productivity.


BrandAven
SeriesSPZ Series
Working Distance108 mm
Base TypePLED Stand
ESD SafeYes
IncludesSPZ-50E Body, PLED Stand, Dust Cover, Rubber Eye Guards, Tension Control Pin
Magnification Range6.7x to 50x
TypeBinocular
Type of IlluminationLED Ring Light
