Kester

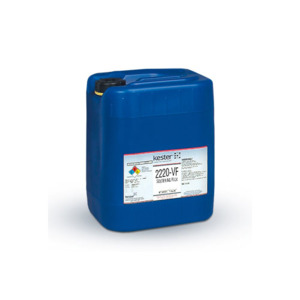

Kester 64-0056-2220 Soldering Flux, VOC-Free, Organic, Water Soluble, ORH1, 5gal, 2220-VF Series
Our Part #488CH6200
Condition:New
Mfr Part #64-0056-2220
Kester
Kester 64-0056-2220 Soldering Flux, VOC-Free, Organic, Water Soluble, ORH1, 5gal, 2220-VF Series
Our Part #488CH6200
Condition:New
Mfr Part #64-0056-2220
Hazardous
Cannot Ship Air
CA Prop 65
Has Expiration Date
RoHS
Hazardous
Cannot Ship Air
Calif. Prop 65
Has Expiration Date
RoHS
- Description
- Specifications
- Documents
- Thermally Stable and VOC-Free to allow for effective high temperature soldering
- High activity
- Minimizes icicling and bridging
- Chemically compatible with most solder masks and board laminates
- High ionic cleanliness and no surface insulation resistance degradation
- Compatible with leaded and lead-free wave soldering applications
- Classified as ORH1 per J-STD-004
Kester 2220-VF is a high activity, organic flux designed for lead-free automated wave solder applications. The flux will provide maximum capillary wetting action up plated through-holes, making it ideal for use on multilayer boards. Along with this enhanced activity, Kester 2220-VF flux produces bright, shiny solder joints and the residue after soldering is effectively removed in standard water cleaning systems. Kester 2220-VF is free of volatile organic compounds (VOC).
Brand: Kester
Flux Type: ORH1
Lead Free: Yes
Container Size: 5 gal.
Container Type: Pail
Flux Characteristics: Water Soluble
Percent Solids: 7
Physical State: Tacky
Product Type: Soldering Flux
Series: 2220-VF Series
Shelf Life: 365 days
Specific Gravity: 1.06
Storage Temperature: 4-25°C
Water Soluble: Yes
