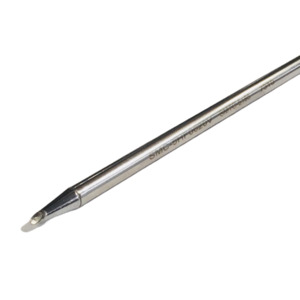

Metcal SMC-5HF0020V Soldering Tip, Rework Cartridge, Concave Hoof, 2x11.6mm, 575 F, SMC-500 Series

Our Part #488-566

Condition:New

Mfr Part #SMC-5HF0020V

Metcal SMC-5HF0020V
Metcal
Metcal

Metcal SMC-5HF0020V Soldering Tip, Rework Cartridge, Concave Hoof, 2x11.6mm, 575 F, SMC-500 Series

Our Part #488-566

Condition:New

Mfr Part #SMC-5HF0020V

$73.10EACH
Qty:Price:Savings
1$73.10
10$71.27Save
25$68.35Save
50$66.89Save

CVC-, SMC- Solder Tip Cartridges are the standard soldering tip range for the Metcal CV-5200, CV-500, MX-500, MX-5200 and MX-5200 series soldering systems. All cartridges are available in 4 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C, 800-series nominally 440 ˚C and 900-series nominally 470 ˚C. The temperature/series is designated by the first digit following the dash in the part number. e.g. 600 will all be CVC-/SMC-0xx, 700-series will be CVC-/SMC-7xx, 800-series will be CVC-/SMC-8xx and 900-series will be CVC-/SMC-9xx. Metcal recommends the 700-series for the majority of applications. The 600-series for light load or low temperature applications, 800/900-series for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

BrandMetcal
SeriesSMC-500 Series
Tip TypeHoof
Tip StyleConcave
Tip Diameter2 mm
Tip Length11.6 mm
Temperature Rating575°F
Lead Free Solder CompatibleYes
Angle60 Deg.
ApplicationsTemperature Sensitive
Bevel60 Angle x 4 mm
FitsMetcal MX-RM3E, MX-RM6E, CV-H1-AV Solder Handpieces
For Use WithMetcal MX-500, MX-5000, MX-5200, and CV-500, CV-5200 Systems
RoHS ComplianceYes
Special FeaturesFor Drag Soldering SOICs/QFPs
