The DS70504 5GHz High Performance 4 Channel Digital Oscilloscopes

In today's integrated design field, a highly integrated comprehensive digital oscilloscope has become an important tool for design engineers. RIGOL's DS70000 series oscilloscope integrates 5 independent instruments into 1 including a digital oscilloscope, one spectrum analyzer, one digital voltmeter, one high precision frequency counter and totalizer, and one protocol analyzer.

The DS70000 series provides a comprehensive instrument that meets your actual test needs.

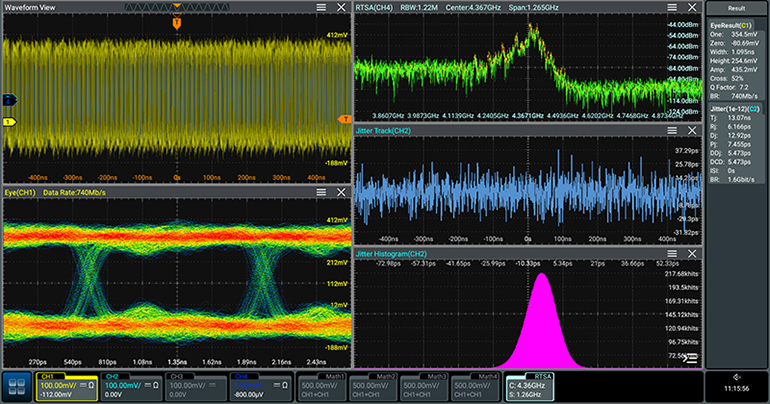

Rigol DS70000 Series Digital Oscilloscope

Digital Oscilloscope
  • Bandwidth 5GHz
  • Up to 20 GSa/s real-time sample rate
  • 4 analog channels and 1 EXT channel
  • Up to 2 Gpts memory depth(RL-20 option)
  • Maximum waveform capture rate of 1,000,000 wfms/s
Digital Voltmeter
  • 3-digit DC/ACRMS, AC+DCRMS voltage measurement
  • Sounds an alarm for reaching or exceeding the limits
High-precision Frequency Counter and Totalizer
  • 3 to 8 digit (selectable) high-precision frequency counter
  • Supports the statistics on the maximum and minimum values of the frequency
  • 48-bit totalizer (standard)
Real-Time Spectrum Analyzer (RTSA Option)
  • Standard configuration of enhanced FFT, real-time operation for max. 16 Mpts waveform data
  • Maximum frequency range: oscilloscope analog bandwidth
  • Up to 4 groups of operations can be displayed at the same time
  • Independent FFT color persistence view supported
  • Up to 15 peaks available for the peak search function; event table available to be exported
Protocol Analyzer (EMBDA, AUTOA, AUDIOA, AEROA, and BND Options)
  • Supports RS232/UART, I2C, SPI, CAN, LIN, I2S, FlexRay, and MIL-STD-1553 serial bus
  • Supports analog channel trigger and decoding
  • Works with waveform recording and pass/fail mask testing
Product Features
  • Analog channel bandwidth: Max. 5 GHz, 4 analog channels and 1 EXT channel
  • Maximum real-time sample rate: 20 GSa/s
  • Maximum memory depth: 2 Gpts
  • Waveform capture rate >1,000,000 wfms/s
  • Vertical sensitivity range: 1 mV/div~10 V/div (1 Megohm), 1 mV/div~1 V/div (50 Ohm)
  • Timebase range: 50 ps/div~1000 s/div
  • Up to 2,000,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Integrates 5 independent instruments into 1, including digital oscilloscope, real-time spectrum analyzer (RTSA option), digital voltmeter, 8-digit frequency counter and totalizer, and protocol analyzer (EMBDA, AUTOA, AUDIOA, and AEROA Options)
  • Standard trigger functions: Edge trigger, Pulse trigger, Slope trigger, Video trigger, Pattern trigger, Duration trigger, Timeout trigger, Runt trigger, Window trigger, Delay trigger, Setup/ Hold trigger, Nth Edge trigger, RS232, I2C, SPI, CAN, FlexRay, LIN, I2S, and MIL-STD-1553
  • A variety of serial decoding functions (BND option): RS232, I2C, SPI, CAN, FlexRay, LIN, I2S, MIL- STD-1553, and CAN-FD; supporting 4 decoding channels
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of math operations, LowPass, HighPass, BandPass, BandStop, built-in enhanced FFT analysis and peak search function
  • Eye diagram and jitter analysis (JITTA option)
  • Unique UltraVision III technical platform
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, AUX OUT; Web Control supported
  • Main 15.6-inch HD capacitive multi-touch screen equipped with electronically controlled one-button screen inclination for signal visualization, analysis, and results; multi-window split screen display
  • The photoelectric encoder operating knob prolongs its service life, guaranteeing more than 100,000 times of pressing operation and 1 million times of rotation operation, greatly improving its service life
  • Secondary 3.5-inch touch screen separates menus and functions from signals and analysis with a customized function and shortcut menu
  • Electronic label display of the model and main parameters of the product, sustaining the display contents up to 20 years, and capable to be updated when any option is upgraded
  • Support online version upgrade
  • 3.5 GHz high-end active differential probe PVA8350 (option)
  • 7 GHz high-end active differential probe PVA8700 (option)
  • Pre-compliance testing of USB2.0 (USBC option) and 100Base-T Ethernet (ENETC option)

BrandRIGOL
Bandwidth5 GHz
Sampling Rate20 GS/s
SeriesDS70000 Series
TypeDSO
Analog Channels4
Memory500 Mpts
