Requires Dry Ice
- Description
- Specifications
- Documents
- Specifications:
- Series: 3515
- Product Type: Epoxy Adhesive
- Hardness: 72Shore D
- Color: Black
- Primary Color: Black
- Physical Form: Paste
- Cure Time: 30min
- Viscosity Measurement: 2.5 to 10Pa/s
- Chemical Composition: Epoxy Resin, Treated Fumed Silica, Epoxy Resin, Substituted Silane, Imidazole Derivatives, Carbon Black
- Specific Gravity: 1.23
- VOCs Content: 0g/L
- Odor: Slight Epoxy
- Cure Type: Heat Cure
- Dielectric Strength: 26kV/mm
- Elongation at Break: 1.88%
- Tensile Strength: 5150psi
- Container Capacity: 30cc
- Container Type: Syringe

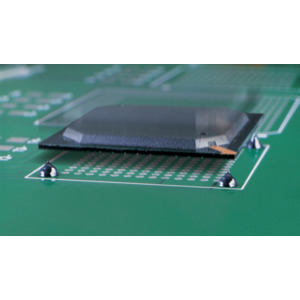

- Applications: Bonding, Underfill, Self-Alignment of SMT Components During the Reflow Operation
The Loctite 299182 is a black epoxy adhesive in a 30 cc syringe. It is designed to be used for bonding, underfill, self-alignment of SMT components during the reflow operation.
Brand: Loctite
Series: 3515 Series
