Cal Test Electronics

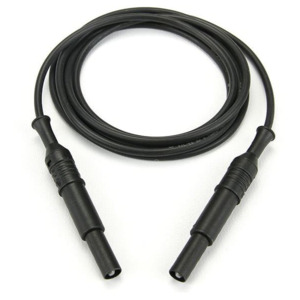

Cal Test Electronics CT3637-25-0 Test Lead, 4 mm Retract Sheath Plugs, Silicone, 25 cm, Black
Our Part #41423.1
Condition:New
Mfr Part #CT3637-25-0
Cal Test Electronics
Cal Test Electronics CT3637-25-0 Test Lead, 4 mm Retract Sheath Plugs, Silicone, 25 cm, Black
Our Part #41423.1
Condition:New
Mfr Part #CT3637-25-0
$17.00EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $17.00 | |
| 20 | $16.15 | Save |
| 30 | $15.30 | Save |
| 50 | $14.96 | Save |
Multiples of: 10
- Description
- Specifications
- Documents
Specs:
- IEC Rating 600 V CAT II
- Current Max 12 A
- Resistance Max 55 mohm
- Jacket Material Silicone
- Conductor Area 0.75 mm2
- Wire Gauge 18 AWG
- Stranding (# x dia.) 195 x 0.07 mm
- Jacket OD 3.7 mm (0.146 in.)
- Temperature -20 to +80 C
- RoHS (2011/65/EU) Compliant
- Materials: Body: Polyamide; Contact: Brass, Nickel Plt
- Banana Contact: BeCu, Nickel Plt
- Meets IEC 61010-031 safety specifications
- Available in 6 standard lengths
- Available in 6 colors
Added safety and protection when standard banana jack connections are encountered. With Silicone jacketed wire, 0.75 mm2 (18 AWG). Covering sleeve retracts as you plug into the jack. Banana plug includes a Grey plastic insulation tip for added protection.
Brand: Cal Test Electronics
$17.00EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $17.00 | |
| 20 | $16.15 | Save |
| 30 | $15.30 | Save |
| 50 | $14.96 | Save |
Multiples of: 10
