Pomona

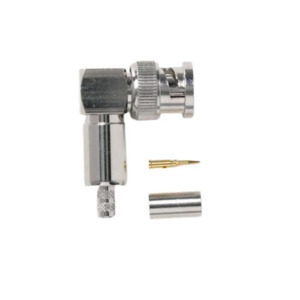

Pomona 73061 BNC Right-Angle Plug, Crimp Type, 50 Ohms, DC - 4GHz, Brass, Nickel Plated, PTFE
Our Part #35108.1
Condition:New
Mfr Part #73061
Pomona
Pomona 73061 BNC Right-Angle Plug, Crimp Type, 50 Ohms, DC - 4GHz, Brass, Nickel Plated, PTFE
Our Part #35108.1
Condition:New
Mfr Part #73061
$32.99EACH
- Description
- Specifications
- Documents
- DC – 4GHz bandwidth.
- Connectors are precision machined.
- Connector accepts cable types RG/U: 58, 141
Brand: Pomona
Voltage: 500 V
Cable Type: RG58, RG141
Finish: Nickel Plated
Frequency: 4 GHz
Impedance: 50 Ω
Input VSWR: 1.35
Insulation Material: PTFE
Insulation Resistance Range: 5000 MΩ
Material: Brass
Operating Temperature Range: -85-329°F
$32.99EACH
