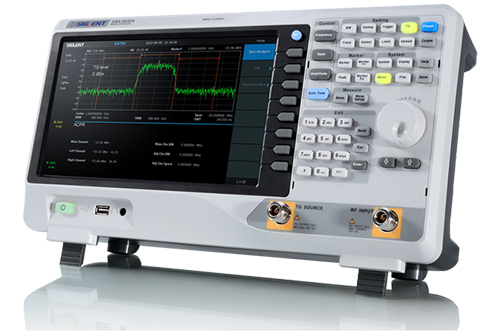

Siglent SSA3032X Spectrum Analyzer

Siglent’s SSA3032X Spectrum Analyzer has a frequency range of 9 kHz to 3.2 GHz with included Tracking Generator. With its light weight, small size, and friendly user interface, the SSA3032X offers an easy to read display, powerful and reliable automatic measurements, and plenty of powerful features.

Specifications and Key Features

• 3.2 GHz frequency range

• 1 Hz minimum resolution bandwidth

• Includes tracking generator and pre-amplifier

• All-digital IF technology

• -161 dBm/Hz displayed average noise level (Typ.)

• -98 dBc/Hz @10 kHz offset phase noise (1 GHz, Typ.)

• Total amplitude accuracy < 0.7 dB

• USB, LAN, REF Out and Trigger IN rear interfaces

• 10.1-inch WVGA (1024 x 600) Display (not a touch screen)

Optional Series Features:

• Reflection Measurement Kit

• EMI Pre-compliance Test Kit

• Advanced Measurement Kit

Next-Gen Signal Testing Powered by IF

Siglent’s SSA3000X Series of spectrum analyzers incorporate an all-digital intermediate frequency (IF) processing system. This core technology is designed to be faster, provide better resolution, and better accuracy compared to traditional analog IF designs. Digital IF allows for greater flexibility in signal analysis and processing, which is vital for modern applications like wireless communication testing (Wi-Fi, Bluetooth, RFID), EMI pre-compliance testing, and general R&D in RF circuits.

Siglent SSA3000X Series

Siglent’s SSA3000X series of spectrum analyzers have a frequency range of 9 kHz to 2.1 GHz / 3.2 GHz. Applications for the series include broadcast monitoring/evaluation, site surveying, EMI pre-compliance, research and development, education, production, and maintenance.

What's in the Box

• SSA3032X Spectrum Analyzer

• USB cable

• Power cord

• Quick start guide

• Tracking generator
