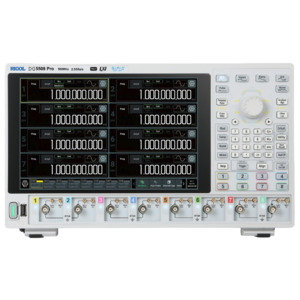

DG5000 Pro Series Function/Arbitrary Waveform Generator

Features

• 8-channel output, isolated from the ground
• Max. sample rate: 2.5 GSa/s
• Max. output frequency: 250 MHz
• Vertical resolution: 16 bits
• Square: 170 MHz max. frequency, 0.8 ns min. rise time
• Pulse: 120 MHz max. frequency, 4.2 ns min. pulse width
• Built-in high-order harmonic generator (max. 20th order)
• A maximum Arb waveform length of 64 Mpts/CH (128 Mpts/CH optional)
• Optional functions: Sequence, IQ, Multi-pulse, Pattern, Multi-tone
• 10.1'' HD touch screen, allowing you to configure multi-channel waveforms together from a single screen
• Standard Web Control function for easier remote cooperation

The DG5000 Pro Series Function/Arbitrary Waveform Generator is an all-in-one generator that integrates Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, and Analog/Digital Modulator. It is a multi-functional and cost-effective multi-channel function/arbitrary waveform generator.

DG5000 Pro is designed to solve your complex multi-channel and high-precision testing challenges and significantly save valuable experimental space and investment.
