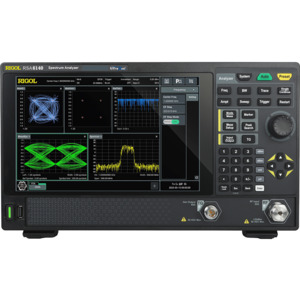

RSA6000 Series Real-Time Spectrum Analyzer

RSA6085 Analyzer Features

• 5 kHz ~ 14 GHz Frequency Range

• 200 MHz Real-Time / Analysis BW

• 4 THz/s Sweep Speed

• -163 dBm(typ.) DANL (1GHz)

• -108 dBc/Hz(typ.) Phase Noise (1GHz, 10kHz)

• 0.7 dB Amplitude Accuracy

Benefits

• 5 kHZ to 26.5 GHz frequency range - from low-frequency comms to microwave radar.

• 200 MHz real-time bandwidth, 4 THz/s sweep speed - capture fast, transient signals with precision.

• Rich signal analysis & demodulation within 200 MHz bandwidth

• Five modes in one device: GPSA, RTSA, VSA, EMI, ADM - ideal for R&D, production, and compliance.

• Built-in preamp and tracking generator - ready to use, no external modules required.

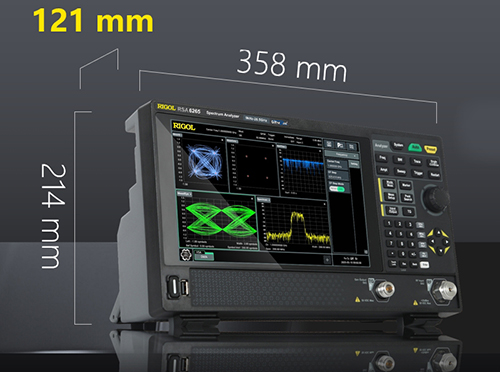

• Compact and portable, easy to deploy in the field.

• Touch + key operation, supports Web Control for remote access.

• USB, LAN, HDMI interfaces, SCPI compatible - ready for integration and automation.

The RIGOL RSA6000 Series Real-Time Spectrum Analyzer, is built on the newly upgraded UltraReal platform. This innovative instrument seamlessly integrates high-performance signal capture, multi-dimensional signal analysis, and flexible portable deployment, empowering engineers to capture fleeting signals and build their ideal RF testing workstation. With one-click mode switching, remote Web Control, and a lightweight form factor, it's a core platform for R&D, validation and troubleshooting - delivering high-end performance in a truly portable form.

Its excellent performance in SFDR, phase noise, amplitude accuracy and test speed makes it applicable in various test scenarios such as spectrum analysis, real-time spectrum analysis, vector signal analysis, pulse analysis.

RSA6000 series real-time spectrum analyzer has strong expansion capability, allowing you to build the test system or perform user-defined development via various digital and analog output interfaces. With its excellent performance and flexible configuration, it can meet your test demands in various application scenarios such as wireless communication, automobile electronics, Internet of Things (IoT), and etc.

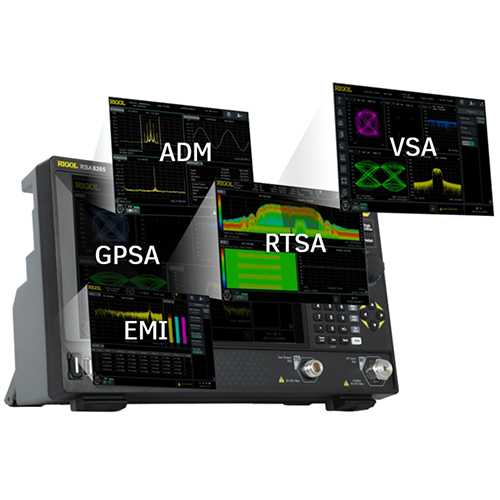

All-in-One Platform - Five Modes in One

• General Purpose Spectrum Analysis (GPSA): A powerful traditional swept analysis mode offering automated measurements such as channel power, adjacent channel power ratio (ACPR), occupied bandwidth (OBW), and harmonic distortion.

• Real-Time Spectrum Analysis (RTSA): Utilizes density maps, spectrograms, and PvT views to intuitively display time, frequency, and amplitude changes in complex signals—ideal for resolving inter-channel interference, spectrum monitoring, and frequency-hopping signal analysis.

• Vector Signal Analysis (VSA): Optional demodulation analysis with 200 MHz vector demodulation bandwidth, easily handling various wideband communication signals through constellation diagrams, eye diagrams, EVM, and other parameters for comprehensive transmitter quality assessment.

• Analog Demodulation (ADM): Supports in-depth analysis of AM/FM/PM analog modulated signals, automatically measuring key parameters like carrier power, modulation depth, and frequency deviation.

• EMI Pre-Compliance Analysis (EMI): Built-in CISPR-compliant filters for pre-testing conducted and radiated emissions, identifying and mitigating conducted/radiated disturbance sources to accelerate product time-to-market.

In The Box

• RSA6085 Analyzer

• Power Cord

• Calibration Certificate
