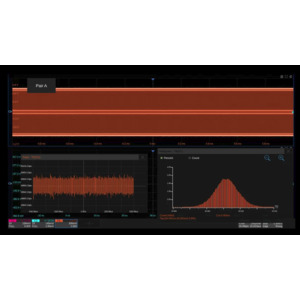

Siglent 2.5G/5G/10G Base-T Compliance Test Software

Feature

• Software for the SDS7000A Series of oscilloscopes
• FX-AMETH test fixture sold separately

Siglent SDS7000A-CT-2.5/5/10GBASE-T is the optional 2.5G/5G/10G Base-T Compliance Test Software Compliance Test software for the SDS7000A Series of oscilloscopes. It supports full electrical compliance testing for 2.5G/5G/10GBase-T Ethernet, including critical parameters such as output drop, transmitter timing jitter, power spectral density, and MDI return loss. These features help ensure devices meet IEEE standards. Engineers can automatically generate IEEE 802.3-2018-compliant compliance test reports in HTML, XML, or PDF formats, including pass/fail status, threshold values, measured results, margin analysis, and waveform displays. This visually rich and data-driven reporting streamlines troubleshooting and product optimization.
