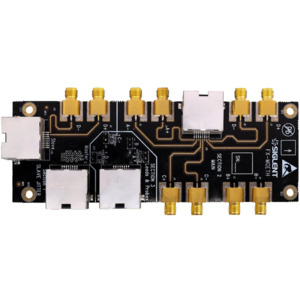

Siglent FX-MGETH  2.5G/5G/10G Ethernet Test Fixture

Key Features:

• 3 sections, each section has some specific functions:
  • Supports the Ethernet Compliance test for 2.5/ 5/ 10G BASE-T transmitter timing jitter-slave
  • Supports most of the Ethernet Compliance tests for 2.5/ 5/ 10G BASE-T by using two SMA cables.
  • Supports most of the Ethernet Compliance tests for 2.5/ 5/ 10G BASE-T by using a differential probe.

Siglent FX-MGETH is the Ethernet Electrical Compliance Test Fixture which cooperates with software for 2.5/ 5/ 10G BASE-T ethernet compliance validation on SDS7000A. Siglent offers a compliance testing application for 2.5G, 5G, and 10G Base-T Ethernet to assess whether an Ethernet transmitter device under test (DUT) meets the required standards. Conducting these tests requires various instruments, including an oscilloscope, vector network analyzer, arbitrary waveform generator, spectrum analyzer, standard test fixture, optional balun, power divider, probe, and cables.
