Fluke Networks MFTK-DC MM/SM Kit Multi-mode and Single Mode 850/1310 TRC MPO Troubleshooting Kit

Reduce single-mode and multimode multi-fiber trunk testing time by 80% with the MFTK-DC MM/SM Kit. With a single button push, Fluke Network's MultiFiber Pro tests all 12 fibers in a trunk in seconds without the hassle of fan out cords. View loss measurements for individual fibers and polarity in a simple graphical format. Results can be saved in the tester or transferred to LinkWare PC for reporting or archival. Also includes an MPO inspection camera and cleaning tools plus a tool for determining if a fiber connection is live.

Features

• Includes MultiFiber Pro Power Meter:
  • Automatic scanning and testing of all fibers in MPO (Multi-fiber Push On) connectors with "Scan All" function
  • Support for both Multi-mode and Singlemode MPO trunks
  • Eliminates the need for fan-out cords when testing fiber trunks
  • Easy to interpret test results with minimal navigation
  • Stores up to 3,000 test results (or the equivalent of 250 MPO cables) internally
  • User interface displays all 12 fibers
  • Automate 8, 10 and 12 fiber measurements
  • Troubleshoot MPO links and drill down to single fiber test results
  • Polarity measurement (test individual patch cords, permanent links and channels)
• Includes FI-3000 FiberInspector Ultra Camera:
  • Supports single fiber or MPO, automated or instant manual inspection
  • Offers an extensive feature set for testing MPO trunks, cassettes, array cables or single fibers
  • Multiple camera design with autofocus
• Includes FiberLert Live Fiber Detector:
  • Optical Power Detection Range: +3 dBm to -30 dBm
  • Detects optical power in single-mode and multimode fiber wavelengths (near infrared range 850 nm to 1625 nm)
  • Non contact detector reduces the risk of contamination and damage
  • Suitable for ports and patch cords, SM, MM, UPC and APC connections
• Includes Test Reference Cords (TRC) and more

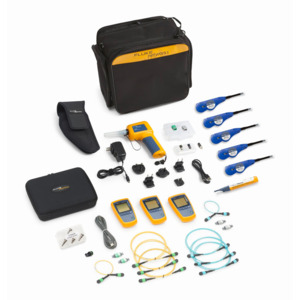

What's in the Box

• MultiFiber Pro Power Meter
• 850 nm Light Source
• 1310 nm Light Source
• Test Reference Cords
• MPO adapters
• Magnetic strap attachment
• FI-3000 FiberInspector Ultra camera
• Tip Set (12/24 UPC and 12/24 APC)
• Single Fiber Adapter for FI-1000 tips
• AC charger
• Getting Started Guide
• Holster
• FI-1000 Tip Kit
• FiberLert Live Fiber Detector
• FI-3000TP-AMPO-12-32 keyless MPO inspection tip
• Set of five 12/24 MPO QuickClean endface cleaners
• Versiv "cube" soft-sided carry case
