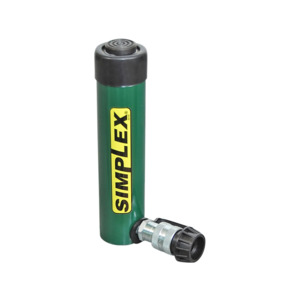

R106, 10 ton (89,0 kN) Capacity, 6 in (152,4 mm) Stroke, Single-Acting, General Purpose Hydraulic Cylinder

Features

• Single acting with heavy-duty internal retraction spring
• Solid and plated piston resists scoring & corrosion
• Heat treated grooved saddles are provided as standard
• Stop ring limits piston travel at the end of the stroke to prevent blow-out
• High flow couplers are plated to resist corrosion
• Polyurethane wipers clean the piston surface during retraction - protecting the inner cylinder assembly from dirt, moisture, and other contaminants
• Meets ANSI/ASME B30.1 Safety Standards
• Load tested under 125% of the nominal capacity
• For working pressures up to 10,000 psi (700 bar)

Simplex R-Series Single Acting Hydraulic Cylinders are the durable, reliable, and versatile choice for general purpose industrial use. With a vast range of cylinder tonnages and strokes available it’s easy to find a cylinder perfectly matched to your application.

Threaded collars offer versatility in fixturing to give you many more application possibilities. Included inside R Series Cylinders is a positive stop to limit piston travel at the end of the stroke, adding extra strength and safety to your cylinder, and cylinder life is extended by the wiper seal.
