Siglent SDS5000HD-PA3 3-Phase Power Analysis

Features

• Software for SDS5000X HD Series of oscilloscopes

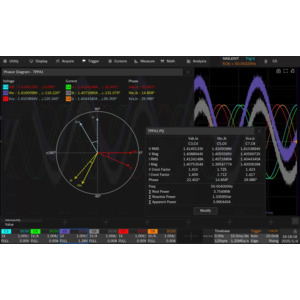

• Adds vector diagram testing, power quality, ripple, and efficiency analysis

The SDS5000HD-PA3 Power Analysis and TPPA (Three-Phase Power Analysis) options deliver a comprehensive range of power measurement and analysis capabilities, significantly enhancing efficiency in designing switching power supplies and power devices. When combined with a 6- or 8-channel oscilloscope, high-voltage differential probes, and current probes, the TPPA option provides a complete solution for three-phase power analysis.

Full use of the three phase power analysis requires a differential voltage probe like the SIGLENT DPB series, and a current probe like the SIGLENT CP series.
