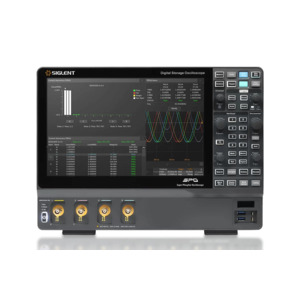

Siglent SDS5104X HD Benchtop Digital Oscilloscope

The Siglent SDS5104X HD is a 12-bit, 4-channel high-resolution digital storage oscilloscope built for advanced signal analysis. Offering up to 1 GHz bandwidth, and 500 Mpts memory depth, it ensures outstanding signal clarity and detail. Its HD 1280×800 capacitive touchscreen, multi-window display capability, and user-friendly interface simplify even the most complex measurement workflows.

Packed with integrated tools such as serial bus decoding, power analysis, three-phase power measurement, Bode plotting, and mask testing, this oscilloscope delivers versatility and precision beyond standard models. With a responsive front panel and comprehensive connectivity options—USB, HDMI, LAN, and WebServer control—the SDS5104X HD stands out as a modern solution for today’s engineering challenges.

Specifications (SDS5104X HD)

• 1 GHz bandwidth

• 4 analog channels + 1 external trigger

• Sampling rate up to 5 GSa/s
  (Digital Channels Max. Sampling Rate 1.25 GSa/s)

• Up to 2.5 Gpts waveform length

Features and Highlights

• 12-bit ADC (Analog-to-Digital Converter)

• Waveform capture rate up to 160,000 wfm/s in normal mode,
  (650,000 wfm/s sequence mode)

• Low noise floor: 140 μVrms @ 1 GHz bandwidth (typical)

• Supports 256-level intensity grading and color temperature display modes

• Synchronously measure 3-phase voltage and current signals (opt SDS5000L-PA3)

• Power-up sequence testing ensures that signals from different circuit modules follow the correct timing to avoid conflicts

• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering

• Serial bus triggering and decoder, supports protocols including standard: I2C, SPI, UART, CAN, LIN and optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429

• History waveform record (History) function, the maximum recorded waveform length is 170,000 frames

• Automatic measurements on 60+ parameters, supports statistics with histogram, track, trend, gating measurement, and measurements on Math, History and Memory traces

• 8 Math traces (8 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor

• Waveform generator (optional) with SAG1021I USB isolated waveform generator module, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 170,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event

• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Double Pulse Test

• High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks

• Interfaces include: 1 x USB Host 3.0 , USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN, HDMI, External Triger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In, 10 MHz Out

• Built-in web server supports remote control over the LAN port using a web browser. Support SCPI remote control commands. Support external mouse and keyboard

Complete Wide Bandgap Semiconductor Testing Solution

The addition of 6- and 8-channel oscilloscopes along with optical isolation probes completes the toolkit for testing wide bandgap semiconductors. These oscilloscopes feature picosecond-level rise times, allowing precise capture of the rapid waveforms produced by SiC and GaN devices. This capability enables detailed analysis of voltage and current transients as well as switching behavior. By examining signal characteristics such as shape, overshoot, and ringing, engineers can assess signal integrity and refine circuit designs for optimal performance.

Front Panel Tour

A. Analog Input Connectors
B. Digital Input Connector
C. USB 3.0 Host Ports
D. Probe Compensation / Ground Terminals
E. Touch Screen Display
F. Vertical/Horizontal Control, Trigger,
Cursors, Common Functions
G. Power Switch
H. Supporting Legs

Rear Panel Tour

A. AC Power Input
B. USB 2.0 Host Port
C. USB 3.0 Device
D. 1000M LAN Port
E. HDMI Video Output
F. Auxiliary Out
G. Ext Trigger Input
H. 10 MHz In
I. 10 MHz Out
J. Keyhole
K. Handle

SDS5000L Low Profile Series Compared to the SDS5000X HD Benchtop Series

The Siglent SDS5000X HD and SDS5000L series oscilloscopes share core performance specifications—such as 12-bit ADC resolution, bandwidths up to 1 GHz, sample rates up to 5 GSa/s, and a maximum record length of 2.5 Gpts per channel—but differ significantly in form factor and intended use. The SDS5000X HD is a benchtop oscilloscope featuring a 12.1-inch capacitive touchscreen, optional 16 digital channels, and a user-friendly interface designed for direct interaction in lab environments. In contrast, the SDS5000L is a modular, rackmount version with no built-in display or digital channels, optimized for scalable multi-channel systems and automated test setups. It supports external display and mouse input and can be synchronized with up to 64 modules (via SYN64) for systems with up to 512 channels, making it ideal for distributed data acquisition. Both series offer identical analysis capabilities, including advanced triggering, serial decoding, and software options like power analysis and Bode plots.

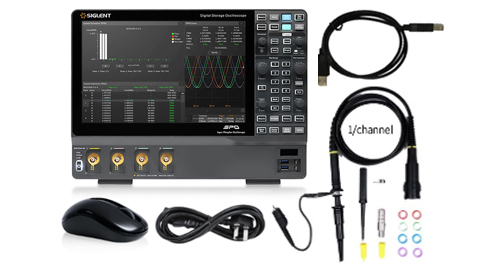

What's in the Box

• SDS5104X HD 4CH Oscilloscope

• USB cable -1

• Quick start -1

• Passive probe - 1/channel

• Certificate of calibration -1

• Wireless mouse -1

• Power cord -1
