Siglent SHA860-VNA Vector Network Analysis Option, For SHA860 Series
Our Part #20018537
Condition:Software
Mfr Part #SHA860-VNA
Siglent SHA860-VNA Vector Network Analysis Option, For SHA860 Series
Our Part #20018537
Condition:Software
Mfr Part #SHA860-VNA
- Description
- Specifications
- Documents
Siglent SHA860-VNA Vector Network Analysis Option
The Siglent SHA860-VNA is the vector network analysis option for the SHA861A and SHA862A analyzers. This powerful software upgrade enables accurate S11 and S21 measurements for evaluating the performance of RF components, cables, filters, and antennas.
Highlights:
S11 & S21 Parameter Measurements: Measure reflection and transmission characteristics with high dynamic range and accuracy.
Wide Frequency Range: Supports measurements from 100 kHz to 3.6 GHz (or up to 7.5 GHz with SHA862A).
High Dynamic Range: Up to 114 dB (typical) S21 dynamic range for demanding applications.

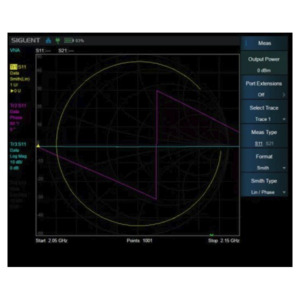

Comprehensive Display Formats: Includes Log/Linear Magnitude, Phase, Group Delay, SWR, Smith Chart, and Polar Charts.
User-Friendly Interface: Supports up to 4 traces, multiple markers, math functions, and trace hold for comparative analysis.
Calibration Options: Full 1-Port and Enhanced Response calibrations with support for standard and advanced calibration kits.
