Siglent SHA860-IQA IQ Data Acquisition Option
For use with SHA860 Series Spectrum Analyzers
Wideband IQ Capture: Supports up to 110 MHz bandwidth and 300 MSa/s sampling rate.
High-Resolution Data: 16-bit IQ data recording for precise signal characterization.
Flexible Storage: Save IQ datasets internally or directly to USB storage devices for external processing and post-analysis.
Extended Capture Depth: Store up to 1 GB of IQ data with a maximum single file size of 250 MB, ideal for advanced demodulation, decoding, or custom analysis.

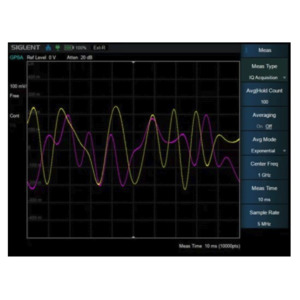

The signal and spectrum analyzer with IQ data capture capability is a widely used tool for signal acquisition. Featuring a 300 MHz sampling rate, and 110 MHz bandwidth, the SHA860-IQA offers a robust blend of performance, functionality, and portability—ideal for field data collection. Users can transfer and save IQ data via USB or LAN for offline processing, enabling accurate signal reproduction and detailed spectrum visualization.
