TekBox

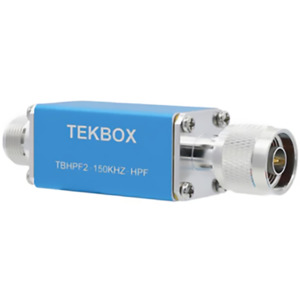

TekBox TBHPF2-150kHz High Pass Filter, 150 kHz, 50 Ohm, 3dB, 135 kHz - 1 GHz, 1.5 A, TBHPF Series
Our Part #20018267
Mfr Part #TBHPF2-150kHz
TekBox
TekBox TBHPF2-150kHz High Pass Filter, 150 kHz, 50 Ohm, 3dB, 135 kHz - 1 GHz, 1.5 A, TBHPF Series
Our Part #20018267
Mfr Part #TBHPF2-150kHz
RoHS
$EACH
RoHS
- Description
- Specifications
- Documents
Specifications
- High Pass Filter, symmetric, reflective, 50 Ohm
- 3dB bandwidth: 135 kHz – 1 GHz
- S11, 150 kHz – 110 MHz: < -17 dB
- Topology: 5 th order Chebyshev
- Filter capacitor voltage rating: 250V
- Filter inductor saturation current: 1.5 A
- Maximum input power at frequencies 300 kHz – 1 GHz: 10W
- Connectors: N-Male / N-Female
- Dimensions: 26 x 26 x 97 mm
- Weight: ca. 110g
Brand: TekBox
Series: TBHPF Series
