PEL 113 Phase Power and Energy Logger, No Sensors

Features and Specifications

• No clamp sensors are provided for this version

• Single-, dual- (split-phase) and three-phase

• Voltage range of 10 to 1,000 V AC/DC (probe dependent)

• Current range of 5 mA to 12 kA AC / 50 mA to 1300 A DC
  (probe dependent)

• +/- 0.2% R +/-0.2V voltage accuracy

• 3 voltage and 3 current channels with auto recognition
  of connected current sensors and probes

• 600 V CAT IV / 1000 V CAT III

• Expandable storage records data on an SD card (up to 32 GB)

• Install without cutting off the power supply

• Powered directly from the phase, eliminating battery reliance

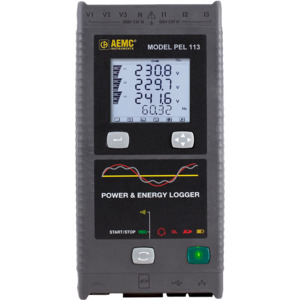

PEL 113 Without Sensors And Quadruple Backlit Digital Display

The PEL 113 offers seamless energy logging for enhanced power management, operating five times faster than the PEL 103. It is versatile and can be used anywhere electricity is present. This device functions as a single-, dual- (split-phase), and three-phase power and energy logger, featuring 3 voltage and 3 current channels, 32 alarms, and multiple connectivity options including USB, Ethernet, Wi-Fi, remote access, and real-time monitoring. Additionally, the PEL 113 provides motor diagnostics, evaluating motor speed, efficiency, and torque without the need for mechanical sensors. Ideal for electricians, engineers, and contractors, it is suited for building and system monitoring, upgrades, and energy audits for both residential and general purposes. The PEL 113 efficiently measures, records, and analyzes crucial energy data, facilitating confident report generation with minimal setup time and effort, and offers both standard and customizable reports.

Applications For Use Include

• Predictive & preventive maintenance

• Energy audits

• Cost optimization

• IT infrastructure maintenance

Android App Available for FOR PEL 112, 113 & 115

• Configure measurements and recordings

• Display data in real-time

• For use on devices with an Android platform

• Software sensors providing all comprehensive and instantaneous motors electrical parameters such as rotation speed, efficiency and torque

PEL 110 Series Three-Phase Power and Energy Loggers

The PEL 100 series are equipped with all the necessary features for logging power and energy data from various electrical power networks worldwide, supporting 17 different network configurations. These energy loggers measure and record three True RMS voltage and current inputs, as well as Watts, VARS, VA, and Energy (kWh and kVA). They also calculate and record Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency, and Total Harmonic Distortion (THD). Additionally, they can record individual harmonic percentages from the 1st to the 50th harmonic based on the operator's preference.

DataView Analysis and Reporting Software

• Display and analyze real-time data on your PC
• Configure functions and parameters from your PC
• Customize views, templates and reports to your exact needs
• Create and store a complete library of configurations that can be uploaded as needed
• Zoom in and out and pan through sections of the graph to analyze the data
• Download, display and analyze recorded data
• Display waveforms, trend graphs, harmonic spectrums, text summaries, transients, event logs and stored alarms
• Print reports using standard or custom templates you design
• Free updates available on our website www.aemc.com

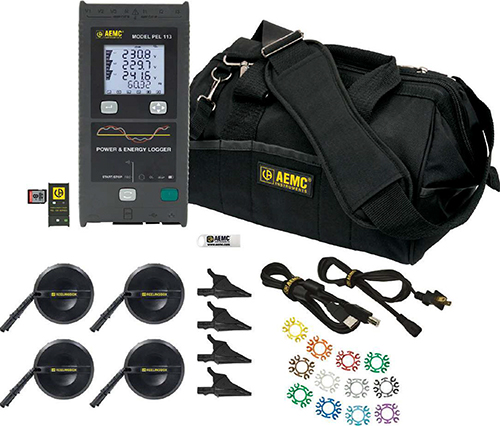

What's in the Box

• PEL 113 Logger

• (4) 10 ft black test leads in reeling box

• (4) black alligator clips

• Set of (12) color-coded input ID markers

• 8 GB SD-card (installed)

• USB SD-card reader

• USB type A to type B cable

• 115 V power cord

• NiMH AAA 8.4 V battery (installed)

• Small classic tool bag

• Quick start guide, and USB drive with DataView software and user manual
