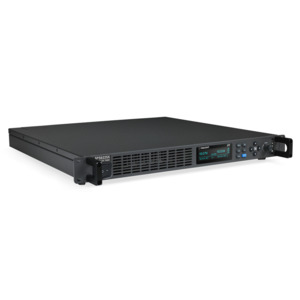

Siglent SPS6225X Power Supply, Single Output, 200V, 25A, 1500W, Switch Mode, SPS6000X Series

Our Part #20017877

Mfr Part #SPS6225X

Siglent SPS6225X
Siglent
Siglent

Siglent SPS6225X Power Supply, Single Output, 200V, 25A, 1500W, Switch Mode, SPS6000X Series

Our Part #20017877

Mfr Part #SPS6225X

$2,180.00EACH

SPS6225X Single Channel Switch Mode power supply

Features and Specifications

  • Programmable, switching DC power supply
  • Single channel
  • Rated voltage: 200V
  • Rated current: 25A
  • Rated power: 1500W
  • Connect up to five SPS6000X chassis of the same model in parallel to expand the output power
  • Load transient recovery time (Load change from 50-100%) < 2.5 ms
  • Adjustable voltage and current slew rates
  • Setting and readback resolution: 10mV, 10mA
  • Remote Sense function to decrease lead resistance error

The SPS6000X Series is a programmable switching DC power supply with a wide range of single output and constant power features. This series includes two models, the SPS6225X and SPS6150X, which feature rated output voltages and currents of 200V / 25A and 100V / 50A, with a maximum output power of 1500W. Users can connect up to five SPS6000X chassis of the same model in parallel to expand the output power to meet different application requirements.

What's in the Box

  • SPS6225X Power Supply
  • USB Cable
  • Quick Start
  • Calibration Certificate
  • Power Cord
  • Output Guard

BrandSiglent
Voltage Range Selector200-299
Output Voltage200 V
Current Range Selector20-29.9
Output Current25 A
Power Range Selector1,000-2,499
Power Rating1.5 kW
Mounting TypeRack Mount
SeriesSPS6000X Series
Display Type3.12 OLED
IncludesUSB Cable, Quick Start, Calibration Certificate, Power Cord, Output Guard
InterfaceUSB,LAN
Number of OutputsSingle Output
ProgrammableYes
Rack Space1U
Special FeaturesConstant Current, Constant Voltage, Switching
