TekBox
TekBox

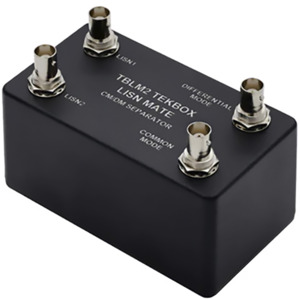

TekBox TBLM02 Line Impedance Stabilisation Network Mate, 150 kHz - 100 MHz, 27dBm, TBL Series

Our Part #20017524

Condition:New

Mfr Part #TBLM02

TekBox TBLM02
TekBox
TekBox

TekBox TBLM02 Line Impedance Stabilisation Network Mate, 150 kHz - 100 MHz, 27dBm, TBL Series

Our Part #20017524

Condition:New

Mfr Part #TBLM02

$318.00EACH

Specifications

  • Frequency range: 150 kHz – 110 MHz
  • Maximum RF level at any BNC port: 27dBm
  • Maximum DC current at any BNC port: 30 mA

The TBLM2 is is a Common Mode / Differential Mode – separator companion device for LISN. The LISN Mate is connected to the output of a LISN inserted into the positive supply line and to a second LISN inserted into the negative supply line.

The conducted noise signal at the output of a LISN is the sum of common mode and differential mode noise. The LISN mate separates it into the common mode and differential mode components, with each signal component available at a separate BNC port. The TBLM2 can be used in the frequency range from 9 kHz to 110 MHz.


BrandTekBox
SeriesTBL Series
$318.00EACH
