• True RMS multimeter
• CAT IV-600 electrical safety rating
• 1000 V input protection on all functions
• 50,000-count display
• Low pass filter
• LoZ function
• Measure up to 1000 V AC V/DC V plus AC A, DC A, resistance, capacitance, frequency, duty cycle, temperature, diode, and continuity
• Waterproof and dustproof (IP67-rating)

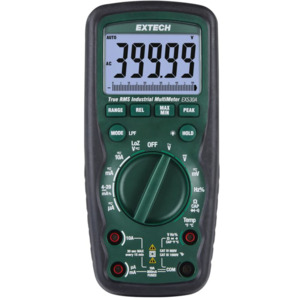

The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions. Comes complete with double-molded test leads, type K thermocouple -45°C to 760°C (-50°F to 1400°F), bead wire temperature probe -20°C to 250°C (-4°F to 482°F), magnetic hanging strap, case, and a 9 V battery.

Several versions of Extech EX500A series multimeters are available. The table below highlights some of the key differences. Please see the attached datasheet for more details.
Each of the products in the table has a basic variant and a NIST calibrated variant. See the Items in this Series section of this webpage for more details.

In The Box

• Multimeter
• Test leads
• Magnetic hanging strap
• Type K bead wire temperature probe
• Carrying case
• 9 V battery
