TBWADA/bundle RF Amplifier Set
Features:
- 1 TBWA2/20dB Wideband RF Amplifiers
- 1 TBWA2/40dB Wideband RF Amplifiers
- 1 TBDA1/14 Wideband Driver Amplifiers
- 1 TBDA1/28 Wideband Driver Amplifiers
Specs:
- Input/ Output:: 50 Ohm, SMA
- dB GAIN; 20 dB or 40 dB

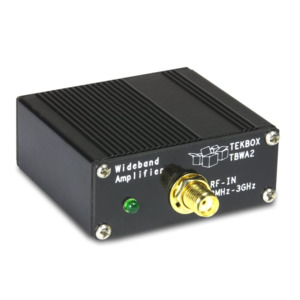

The TBWA2/20dB and TBWA2/40db wideband amplifiers are connected between EMC probe and Spectrum Analyzer to increase the dynamic range of the measurements.
The larger the tip diameter, the lower the coupling loss at frequencies below 1GHz. At frequencies above 1GHz, the performance in terms of coupling loss of all probes is similar. The H20 has a resonance in the range of 1.3GHz. The smaller the loop, the better the spatial response.
Applications:
- General purpose gain block
- EMC probe amplifier
TBDA1 Wideband Driver Amplifiers
TheTBDA1wideband driver amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of + 22 dBm at 1dB compression, they are ideal to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain.
Applications:
- General purpose gain block
- RF driver amplifier
In The Box:
- 1x TBWA2/20dB
- 1x TBWA2/40dB
- 1x TBDA1/14
