- Metal-In Film Laminate 0.0030” thick (3 mil). Protects ESD sensitive contents from electrostatic fields and electrostatic discharges (ESD)
- <20 nJ Energy Limit Test per ANSI/ESD STM11.31. Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD Protected Area (EPA)
- Dissipative Inner and Outer Surfaces Rtt 1 x 104 to <1 x 1011 ohms per ANSI/ESD STM11.11. Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator
- >10lb Puncture Strength Average per FTMS 101C/4046. Provides physical protection for contents
- Printed with ESD Protective Symbol and Lot Code Information. Meets the requirements of ANSI/ESD S541 for quality control purposes
- Lead-free RoHS compliant
- Made in the United States of America

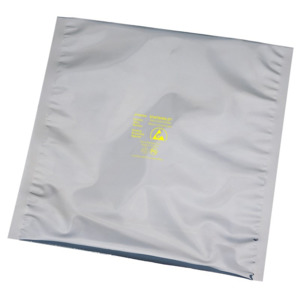

Metal-In Film Laminate protects ESD sensitive contents from electrostatic fields and electrostatic discharges. Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD Protected Area.
Brand: Desco
Opening Type: Open Top
Thickness: 3 mil
Length: 8"
Width: 5"
Color: Silver
ESD Safe: Yes
Heat Sealable: Yes
Material: Low-Density Polyethylene (LDPE)
Package Quantity: 100 Per Pkg.
Product Type: Static Shielding Bags
Puncture Strength: >10 lbs
RoHS Compliance: Yes
Size W x L: 5" x 8"
Storage: Temp of 68°F (20°C). Do not store in ultraviolet sunlight, moisture, or heat - aluminum shielding layer could oxidize.
Surface Resistance: 1 x 10⁴ to < 1 x 10¹¹ Ohms
Tensile Strength: 9000 psi
Type: Metal-In Static Shielding Bag
Warranty: 1 Year
