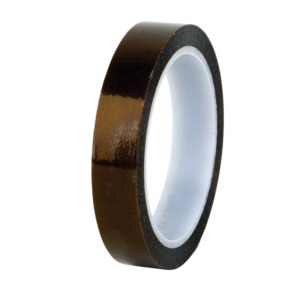

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 32 to 356 °F (0 to 180 °C).

3M™ Polyimide Film Electrical Tape 92 is used as a solder masking tape in a printed circuit board assembly. The tape has a smooth and uniform thermosetting silicone adhesive coating that offers good adherence while eliminating bare spots and lumps. UL Listed and RoHS 2011/65/EU Compliant.

• Highly conformable with a pressure-sensitive, acrylic adhesive
• Flame-retardant and has polyamide backing
• Suitable for use as wave solder masking tape in a printed circuit board assembly
• Designed for anchoring leads and terminal boards
• Withstands a temperature rating of -40 to 311 °F (-40 to 155 °C)
• UL Listed and RoHS Compliant
• UL Listed

• Color: Amber
• Part Number: 92 12"X108YD PLS
• Width: 12 in
