This terminal has a wire range of 12-10 AWG and has case quantities of 500 per case.

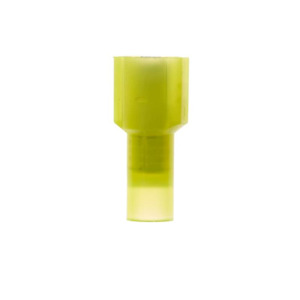

3M™ Scotchlok™ Color-Coded Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. This terminal has a butted-seam barrel which provides electrical contact after crimping. The nylon sleeve is abrasion-resistant, fully insulated and flared with a stepped design to ensure mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

• Nylon-insulated, butted-seam barrel offers easy insertion of wires
• This male disconnect terminal offers excellent holding force
• Allows for quick and easy disconnect of wires
• Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• Rated 600V for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

• Diameter: 0.39 Inch
• Part Number: MNU10-250DMIK
• Width: 0.47 in
