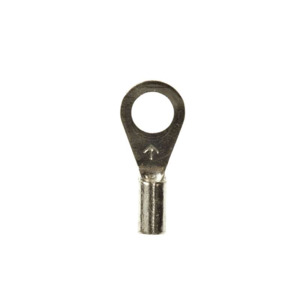

3M™ Scotchlok™ Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.

• Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
• Beveled mouth offers easy insertion of wires
• Standard-style ring tongue fits around the stud
• Stud size #10
• Accommodates wire sizes 22 to 18 AWG
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires

• Part Number: M18-10R/LK
• Width: 0.31 in
