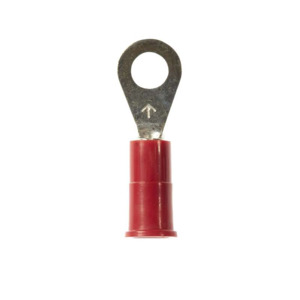

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.

• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• Standard-style ring tongue fits around the stud
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

• Part Number: MV18-8R/LK
• Width: 0.31 in
