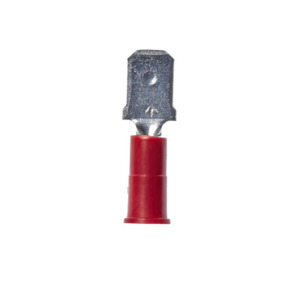

3M 7100024609 Scotchlok Male Disconnect, Vinyl Insulated Butted Seam MVU18-250DMK, 22-18 AWG

Our Part #10298276

Condition:NEW

Mfr Part #7100024609

3M 7100024609
3M
3M

3M 7100024609 Scotchlok Male Disconnect, Vinyl Insulated Butted Seam MVU18-250DMK, 22-18 AWG

Our Part #10298276

Condition:NEW

Mfr Part #7100024609

RoHS
$0.39EACH
Multiples of: 1,000
RoHS

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

3M™ Scotchlok™ Color-Coded Standard Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Features:
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Product Details:
  • Part Number: MVU18-250DMK

Brand3M
Alternate Product Number7100024609-31180
