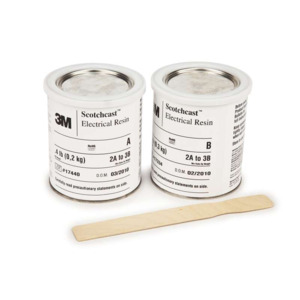

3M™ Scotchcast™ Electrical Resin 282 is a 2-part, oven-curing, liquid resin used for electronic and electrical applications requiring the highest level of protection. This thixotropic, epoxy-based resin has a low-viscosity and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, patching and insulating.

3M™ Scotchcast™ Electrical Resin 282 has a low gel point rating to ensure a quick curing process when kept in a warm environment. The high-tensile strength of the resin exhibits a semi-flexible and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin. It has a high flash point, preventing any fire hazard due to quick ignition. Since the resin exhibits a hydrolytic stability property, it minimizes quick chemical decomposition and thus providing long-lasting usage. MIL-I-16923E Certified and RoHS 2011/65/EU Compliant.

• Has 23-minute gel time at 250 degrees F (121 degrees C)
• Useful for coating coils, transformers, motors, modules, electrical and electronic components
• Withstands temperatures of 311 degrees F (155 degrees C)
• Elongates 45% longer than its original size for easy insulation or wrapping
• Chemical- and moisture-resistant
• MIL-I-16923E Certified and RoHS 2011/65/EU Compliant

• Material: Epoxy
• Product Type: Electrical Resin
