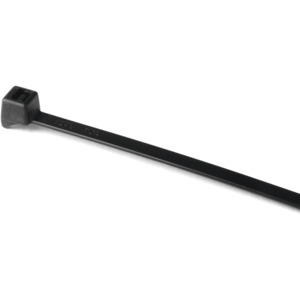

HellermannTyton 112-52114 Clamp Tie, 8"L, 60lb, PA66HS, Black, 1000/Pkg, CTT-Series
Our Part #10238368
Condition:New
Mfr Part #112-52114
HellermannTyton 112-52114 Clamp Tie, 8"L, 60lb, PA66HS, Black, 1000/Pkg, CTT-Series
Our Part #10238368
Condition:New
Mfr Part #112-52114
RoHS
$0.20EACH
Multiples of: 1,000
RoHS
- Description
- Specifications
- Documents
- Head design contains clamping rails to provide full circumferential compression around bundles.
- Bent tail allows for quick insertion into head.
The 360 degree compression ties are designed with underside clamping rails to allow for optimal surface contact and complete circumferential compression around the bundle. The bent tail design allows quick and simple installations by hand. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
Brand: HellermannTyton
Type: Heat-Resistant Cable Ties
Color: Black
Package Quantity: 1000 Per Pkg.
Series: CTT-Series
Alternate Product Number: CTT60R
Bundle Diameter: 0.06" Min | 1.77" Max
Closure Type: plastic pawl
Flammability Rating: UL 94 V-2
For Use With: 110-05005;110-07000;110-07100;110-07101;110-09100;110-09110;110-70083;110-70084;110-70130;110-80000;110-80004
Height: 0.30"
Length: 8"
Material: Polyamide 6.6, heat stabilized (PA66HS)
Operating Temperature Range: -40°F to +257°F (-40°C to +125°C)
RoHS Compliance: Yes
Tensile Strength: 60 lb./in.
Tooth Type: Inside Serrated
Typical Use: For Indoor Use Only
Width: 0.19"
$0.20EACH
Multiples of: 1,000
