- All-in-one bundling and fastening solution reduces costs and assembly time. Anti-rotational oval fastener forces bundle to travel in intended direction. High-spec materials and superior design deliver excellent performance and value.

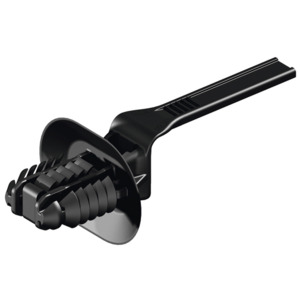

One-piece cable tie and mount offers a simple bundling and mounting solution. The innovative design of this fir tree establishes a 360-degree interface with the panel hole, ensuring a more secure fit. The oval shape won’t rotate once inserted, ensuring proper routing of wires and hoses. The disc feature prevents rattling in high-vibration applications and protects against debris ingress.
Brand: HellermannTyton
Type: Fir Tree Cable Ties
Color: Black
Package Quantity: 3000 Per Pkg.
Alternate Product Number: T50ROSFTOVALU
Bundle Diameter: 0.08" Min | 1.97" Max
Closure Type: plastic pawl
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-07000;110-07101;110-09100;110-09110;110-70083;110-80000;110-80003;110-80017
Height: 0.5"
Length: 8.6"
Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Mounting Hole Diameter: 0.24 - 0.28"
Operating Temperature Range: -40 to +221°F
RoHS Compliance: Yes
Style: 1-Piece Tie Assemblies
Tensile Strength: 50 lb./in.
Thickness: 0.02 - 0.27"
Tooth Type: Outside Serrated
Typical Use: For Indoor and Outdoor Use
UV Stablized: No
Width: 0.2"
