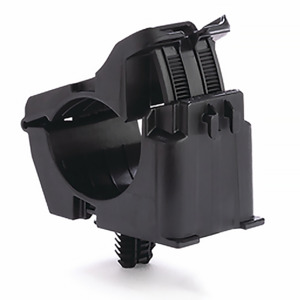

HellermannTyton 156-02712 Ratchet Clamp, Fir Tree Mount, 0.76-1.42" Bundle Dia, PA66HIRHSUV, Black

Our Part #10217552

Condition:New

Mfr Part #156-02712

HellermannTyton 156-02712
HellermannTyton
HellermannTyton

HellermannTyton 156-02712 Ratchet Clamp, Fir Tree Mount, 0.76-1.42" Bundle Dia, PA66HIRHSUV, Black

Our Part #10217552

Condition:New

Mfr Part #156-02712

RoHS
$1.19EACH
Multiples of: 25
RoHS
  • One-piece ratchet closure allows for easy installation during pre- or final assembly
  • Easy release feature simplifies quick adjustments and maintenance
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out
  • High-performing oval fir trees ensure anti-rotational routing in existing or stamped oval or rectangular holes with no additional hardware required

The Inline Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. Built-in attachments include round and oval fir trees and adhesive mounts, so no additional hardware is needed for securing to a hole or panel. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface.

BrandHellermannTyton
TypeInline Ratchet Clamps
Alternate Product NumberIRCCFTOVAL
Bundle Diameter0.76" Min | 1.42" Max
ColorBlack
Flammability RatingUL 94 HB
Length1.37"
MaterialPolyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter0.28 x 0.47 "
Mounting TypeFir Tree Mount
Operating Temperature Range-40°F to +221°F (-40°C to +105°C)
RoHS ComplianceYes
SeriesRatchet P-Clamp Series
Tensile Strength100 lb./in.
Thickness0.02 - 0.27"
Typical UseFor Indoor and Outdoor Use
UV StablizedYes
Width1.37"
$1.19EACH
Multiples of: 25
