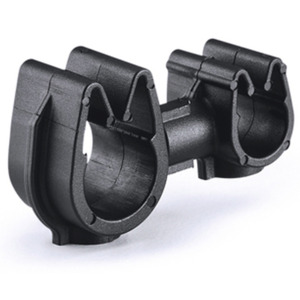

HellermannTyton 156-02284 MOC Clip to MOC Clip, w/pipe/tube holder, 5 mm, 9 mm, UL, PA66HIRHSUV, Black

Our Part #10217445

Condition:New

Mfr Part #156-02284

HellermannTyton 156-02284
HellermannTyton

HellermannTyton 156-02284 MOC Clip to MOC Clip, w/pipe/tube holder, 5 mm, 9 mm, UL, PA66HIRHSUV, Black

Our Part #10217445

Condition:New

Mfr Part #156-02284

RoHS
$0.45EACH
Multiples of: 2,000
RoHS
  • Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
  • Controlled flex and angled entry promote easy installation.
  • Independent rotation allows for adjustable routing orientation.

The MOC to MOC is a rotatable dual routing clip that keeps two routings secured and separated. A swivel coupler allows them to rotate independently of each other.

BrandHellermannTyton
TypeMOC Clips to MOC Clips
Alternate Product NumberMOC5FMOC9M
Bundle Diameter0.16" Min | 0.22" Max
ColorBlack
Depth0.39"
Flammability RatingUL 94 HB
Halogen ContentYes
Height0.68"
Length1.17"
MaterialPolyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range-40°F to +230°F (-40°C to +110°C)
RoHS ComplianceYes
Typical UseFor Indoor and Outdoor Use
UV StablizedYes
$0.45EACH
Multiples of: 2,000
