Mueller Electric BU-PMDP-0 Double Banana Plug, 4mm, Stackable, Copper, Solderless, 15 Amps, Black, 1.58" OAL
Our Part #10179508
Condition:New
Mfr Part #BU-PMDP-0
Mueller Electric BU-PMDP-0 Double Banana Plug, 4mm, Stackable, Copper, Solderless, 15 Amps, Black, 1.58" OAL
Our Part #10179508
Condition:New
Mfr Part #BU-PMDP-0
$4.53EACH
- Description
- Specifications
- Documents
- Voltage - Hands-free testing to 1500V CAT I
- Banana jack spacing = 0.75" (19.05mm)
- RoHS 3 Compliant

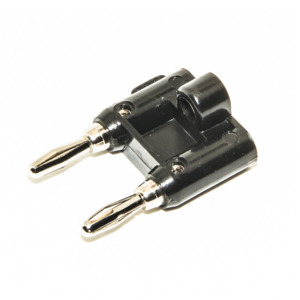

The BU-PMDP is a double 4mm banana plug with industry-standard 0.75" center-to-center plug spacing. Wires can be attached by the axial setscrews and there is a small compartment between the banana plugs which can hold small components
Brand: Mueller Electric
Type: Banana Connectors
Series: BU-PMDP Series
Amps: 15
Voltage: 1500 V
Color: Red
Connection: Screw
Cover: Polypropylene
Dimensions: 1.55 x 1.13 x 0.76"
Lead Length: 4 mm
Material: Nickel Plated Beryllium Copper
Number of Connections: 2
Overall Length: 1.58"
Plating: Nickel-Plated
Product Type: Dual Banana Plug
RoHS Compliance: Yes
$4.53EACH
