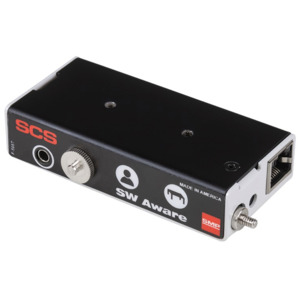

- Single Workstation Continuous Monitor
Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface - Ethernet Connectivity
Provides network communication with Static Management Program (SMP) to collect and report the status of the operator and worksurface mat circuits. - Park Delay Timer and Parking Snap
Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm - Impedance Monitoring Technology (IMT)
Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor - Mat Monitor Switch
Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface - Audible Alarm Adjustment
Sets the audible alarm volume from loud to louder - Enclosure with Mounting Holes
Installs in workbench and equipment environments - 1.2 Volt Operator Test Voltage
Reduces the risk of electrical overstress (EOS) for the handling of sensitive components - <50 Millisecond Alarm Response Time
Identifies failures and intermittencies - Calibration Verification
Use the SCS 770153 Verification Tester to check the test limits of the SW Aware Monitor without removing it from its workstation - NIST Calibrated
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology - 100-240VAC Safety Certified Power Adapter with North American Plug
Works with standard electrical systems in North America, Japan, and Asia - Made in the United States of America
This item is made and stocked in Chino, CA
*The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 106 ohms with product qualification testing per ANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.
Brand: SCS
Voltage: 100-240 VAC
ESD Safe: Yes
Includes: 1x SW Aware Monitor │ 1x Mat Monitor Cord (White) │ 1x Countersunk Washer │ 1x Flat Head Screw, 6-32 x 1/4" │ 1x Keps Nut, 6-32 │ 2x Rounded Head Screws, #6 x 1-1/4" │ 1x Power Adapter with North America Plug, 9 VDC
Series: SW Aware Series
