- 0.0036" (3.6 mil) Thick Bag Film laminate constructed from multiple layers of aluminized polyester and polyethylene: Designed for moisture and electrostatic discharge (ESD) sensitive items (such as SMT). Meets ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, JESD625-A, and EIA 583.
- 0.03 Grams Moisture Vapor Transmission Rate (MVTR): Designed for dry packing of moisture sensitive devices and to protect contents from damage due to ESD events or EMI.
- <10 nJ Energy Penetration Tested per ANSI/ESD STM11.31: Protects contents from ESD charges and discharges. Meets the requirement for discharge shielding per Static Control Bag ANSI/ESD S11.4 Level 3.
- >20lb Puncture Strength Average : Provides physical protection for contents.
- Dissipative Inner and Outer Surfaces Rs 1 x 104 to < 1 x 1011 ohms per ANSI/ESD STM11.11 : Allows bag to be grounded when placed on a grounded surface or handled by a grounded operator.
- Printed with ESD Protective Symbol and lot code information: Meets the requirements of ANSI/ESD S541 for quality control purposes.
- Lead-free RoHS 2, REACH and Conflict Minerals Compliant.
- Made in the United States of America.

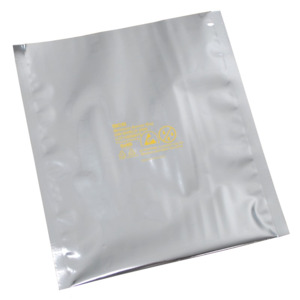

This aluminized moisture barrier bag is designed to provide packaging for ESD and moisture sensitive items, both inside and outside an ESD protected area. Bags are printed with ESD and moisture warning symbols and a lot code for traceability.
Brand: SCS
ESD Safe: Yes
Length: 24"
Material: Aluminized Polyester and Polyethylene
Moisture Resistance: ±0.035 grams/100 sq. in./24 hrs
Operating Temperature: 300-400°F
Package Quantity: 100 Per Pkg.
Product Type: Moisture Barrier Bags
Series: Dri-Shield 2000 Series
Standards: ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, JESD625-A & EIA 583
Surface Resistivity: 1 x 10⁴ Ohms
Tensile Strength: 7800 psi
Thickness: 3.6 mil
Width: 16"
